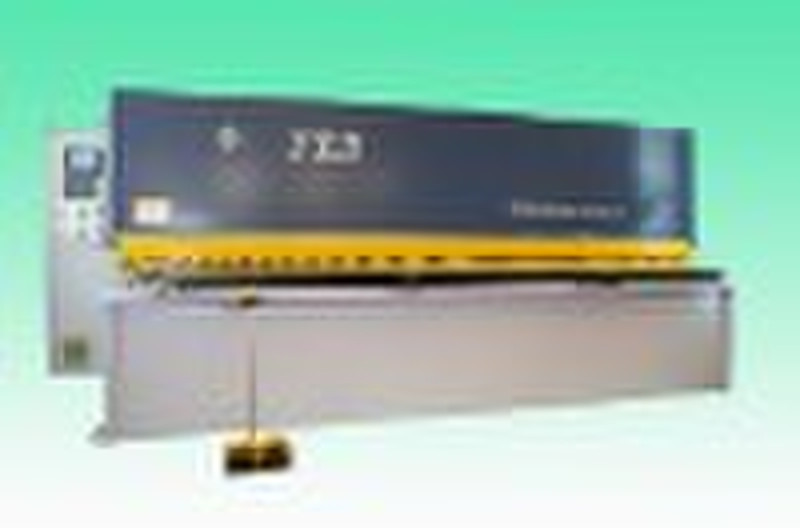

QC12K Series CNC Hydraulic shear

The CNC system of QC12k series shears adopt the worldwide special CNC system for shears in chain. And which have higher functional augmentation and reliablity. The shears can control the movement distance of back gauge, blade clearance and cutting strokes. Xaxis: control back gauge, positioning accuracy ±0.10mm, reset positioning accuracy 0.08mm. Technical features Control cutting length, back gauge plate may auto-control by cutting sheared length and quantity. Cutting sheared length and quantity. Control cutting stroke:reducing no-load stroke time, increasing working efficiency. Point out shearing clearance:point out adjust shearing clearance value in according to shearing plate thick. LCD display program parameter and working state. Memory capacity. 99 thicknesses 99 dimensions 999 shear quantities Break away from computer with use all alone. Turn-off with memory function Correct function of gauge absolute plsition Diagnostics Auto-back extension arm The QC12K serles CNC shears can also be fitted with the following CNC system according to customers request. CNC DNC Series of CYBELEC Co., Switzerland, DNC 61G CUT CNC DAC Series of Delem Co., Holland:DAC310 and DAC350 Name ModelShear angleStrokes(n/min)Throat depth(mm)Table height(mm)Back gauge range(mm)Motor power(kw)Overall dim(LXWXH)Weight(kg)QC12K-12×25001°30≥930080020-80018.53390×2215×212010000QC12K-12×32001°30≥830080020-80018.54090×2215×212011800QC12K-12×40001°30≥730080020-800224930×2390×220014100QC12K-16×25002°30≥830080020-800223405×2350×218012500QC12K-16×32002°30≥830090020-800224105×2325×222015000QC12K-16×40002°30≥730090020-800224905×2385×225018500QC12K-20×2500D2°30≥630088020-1000303400×2350×270019500QC12K-20×3200D2°30≥530088020-1000304100×2350×273023000QC12K-20×4000D2°30≥530088020-1000304900×2350×276025000
